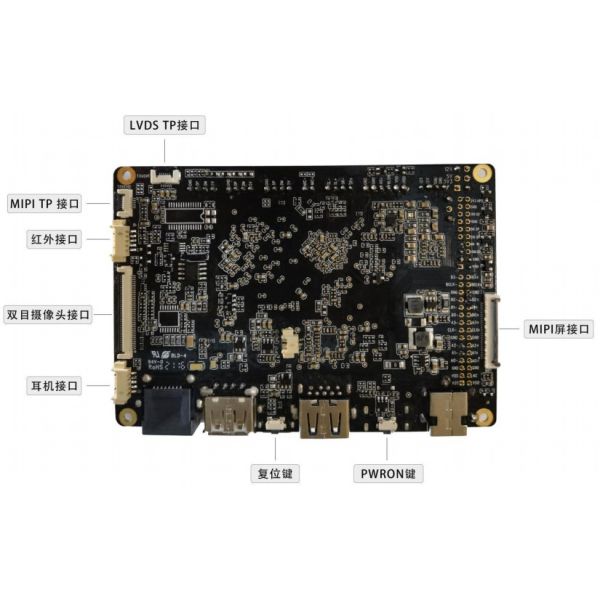

YT-64 RK3568 Android11 Motherboard
- The best size, that is to ensure the compact size and sufficient GPIO port, only 102mm*71mm;
- Use RK's own RK809-5 PMU, while ensuring stable and reliable work, the cost is low enough;
- Support multiple brands and multiple capacities emmc, Samsung 16GB emmc is used by default;
- Use single channel LPDDR4 design, support 2GB capacity by default, 4GB capacity can be customized;
- Support power sleep wake up;
- support Android 11, Linux and other operating systems;
- Support Gigabit wired Ethernet;
- The product is stable and reliable;
Electrical and Structural Parameters
| CPU | Quad coreCortex-A55 1.8GHZ |
| GPU | G52 2EE, OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0 |
| NNIP | RK NN, 0.8 Tops |
| DDR | LP4/LP4x/LP3/DDR4/DDR3L |
| RAM | Nor SFC, SPI Nand, eMMC 5.1, Nand |
| Video decoder | 4KP60 H.264/H.265/VP9 Profile0 2 |
| Video encoder | 1080P60 H.264, H.265 |
| ISP | 8M ISP, HDR |
| MIPI_CSI | MIPI-CSI2, 1×4-lane/2×2-lane |
| CIF/DVP | IO: 150MHz, Support BT.656/601/1120 |
| Display | LVDS/MIPI DSI, HDMI, eDp, Eink |
| SDIO | SDIO 3.0 x3 |
| peripheral equipment | USB 2.0 HOST x4, USB2.0 OTG |
| USB3.0 HOST, Share with 2 Serdes Lanes |
| UART: 4, SPI: 4, PWM: 16, I2C: 6, SAR-ADC: 4 |
| Ethernet | GMACx1(10/100/1000M) |
| audio port | 1x 8chI2S/TDM, 2x2ch I2S |
| 8ch PDM |
| SPDIF OUT |
YT-64 is a motherboard based on Rockchip RK3568, which is independently developed, produced and sold by Shenzhen YECON Technology Co., Ltd.
RK3568 chip from Rockchip is a general-purpose SoC designed for consumer industry applications. The CPU uses a 4-core A55 architecture processor, integrated G52 graphics processor, built-in independent NPU, and runs Android 11 and Linux systems. RK3566 is mainly tailored for consumer products such as tablet computers, speakers with screens, Android laptops, dictionary pens, and industry products such as face payment POS machines, e-books, cloud terminals, video phones, and NAS storage.
RK3568 built-in Rockchip's self-developed NPU, with a hashrate of 0.8 Tops, 512 INT8 MAC 128 INT16/FP16/BFP16 MAC Up to 800MHz. Rockchip also provides developers with a simple and easy-to-use model conversion tool RKNN-Toolkit, which supports one-click conversion of Caffe / TensorFlow / TF-Lite / ONNX / PyTorch / Keras / Darknet mainstream architecture models.
